NIKOLA® LINEAR LED




LED linear pendants, flush mounts, sconces and continuous systems

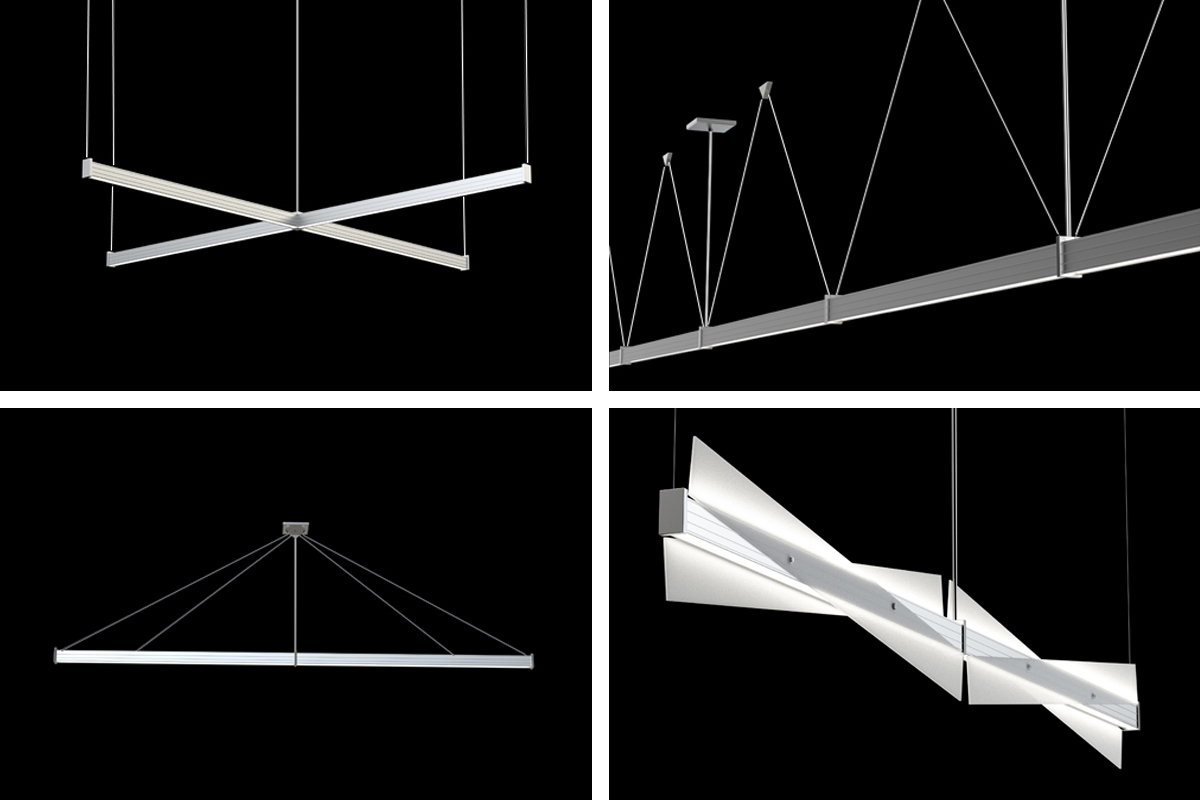

Four distinct suspension designs and two extrusion profiles

Color tuning and single color lighting choices

Multiple glass designs

PRODUCT FEATURES


NIKOLA®

PROFILES

Anodized aluminum extrusion with parabolic interior reflector. Two profiles: X shape and rectangular. The X section gives a broader beam spread and allows for a range of decorative options. Rectangular section for a slender profile and minimal size. Machined aluminum joints and ends.


NIKOLA®

LINEAR LED

Linear LED collection includes pendants, linear systems, wall and flush mounts for open offices or corporate areas. Vertical and horizontal sconces bring sculptural effects and visual impact to any space.


NIKOLA® SYSTEMS

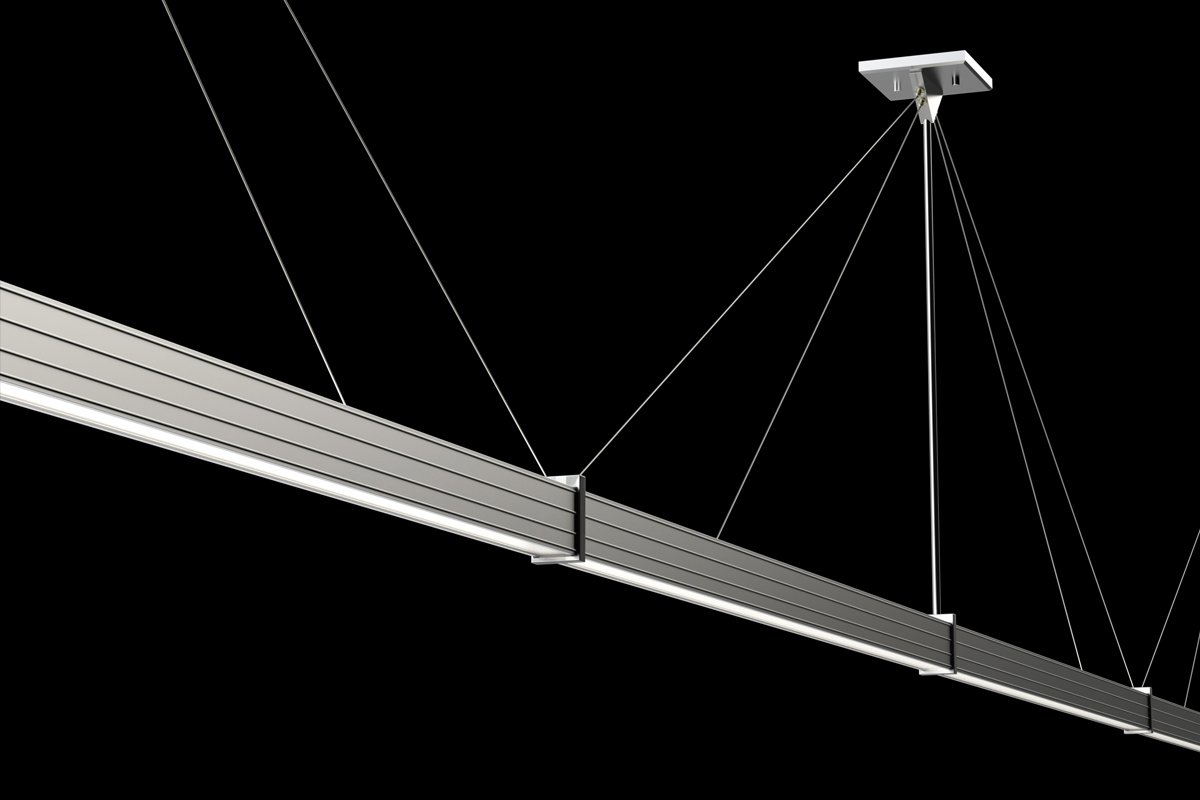

Linear system continuous runs are center fed every 8ft to give even power distribution for consistent light output end to end, no shadows. Single point suspension for an 8ft unit allows for less ceiling disruption.


NIKOLA® MOUNTING

Suspension options and extruded shapes are designed to be architecture on the ceiling. Beautiful when you see them, and are hardly noticeable when not looking for them.

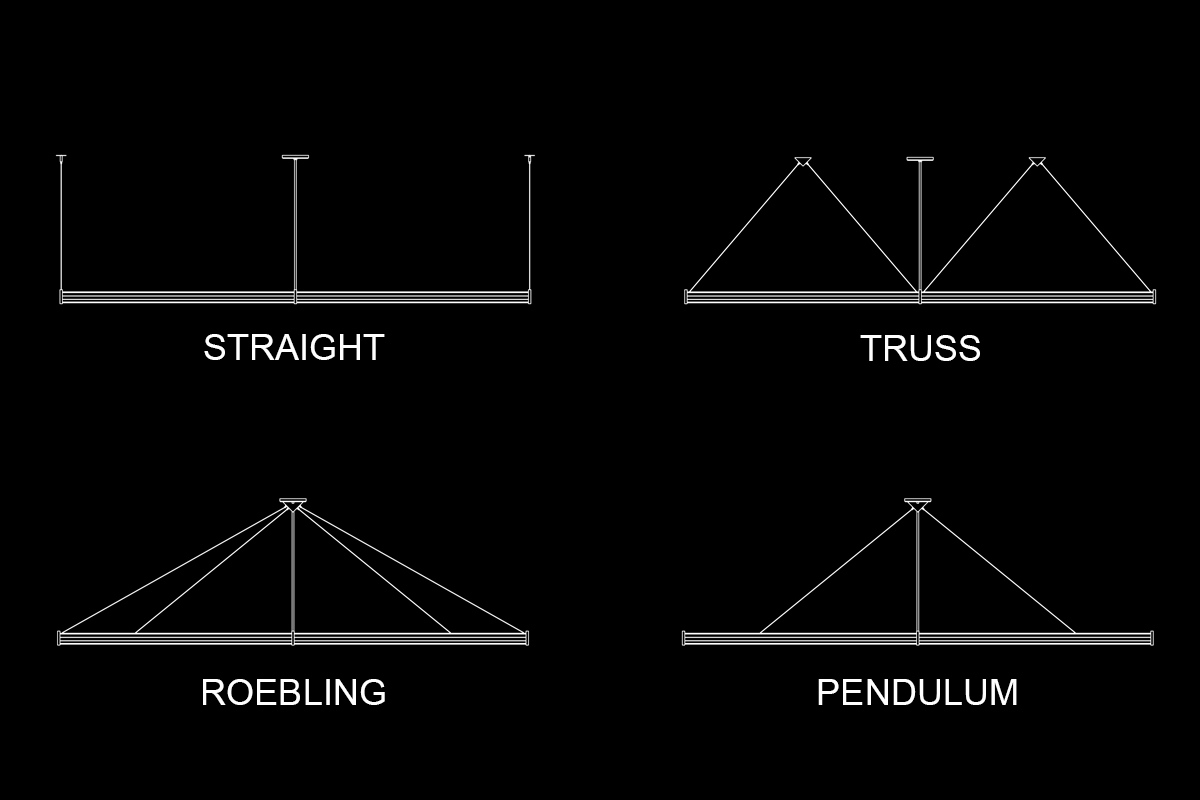

Four distinct suspension options set this line apart. They are spectacular as a stand alone pendant, or as linear system of continuous runs. Stainless steel cable suspension. Field cut tubing with internal suspension cable. A much cleaner look than sloppy cords.


NIKOLA®

LIGHT

Direct-indirect fixtures provide a controlled balance of vertical and horizontal light output. Nikola linear fixtures have been designed to enhance the light output in the vertical plane through a holographic batwing spread lens and can be used to support circadian entrainment. A correctly mounted fixture can provide a sufficient amount of light in the vertical plane for circadian stimulus (CS). Vertical light will yield a higher CS.* Designing with Circadian Stimulus LRC


NIKOLA®

COLOR TUNING

Color tuning option has a range of 2700K to 6500K at 90 CRI. Fixtures can be programmed for a cooler color temperature in the morning for CS, then warmer color in the evening, supporting circadian rhythm. This gives a pleasant feeling, experiencing the beauty of light as it changes throughout the day.


NIKOLA®

CIRCADIAN SUPPORT

Static color temperature in Nikola fixtures can be used to support circadian entrainment. Changes in circadian stimulus values can be achieved by a change of light intensity over time with the same (static) color temperature through dimming. The Nikola standard 3500K* static color temperature LEDs produce enough light and have the proper spectral power distribution (SPD) to support CS. *Based on RPI CS calculator.

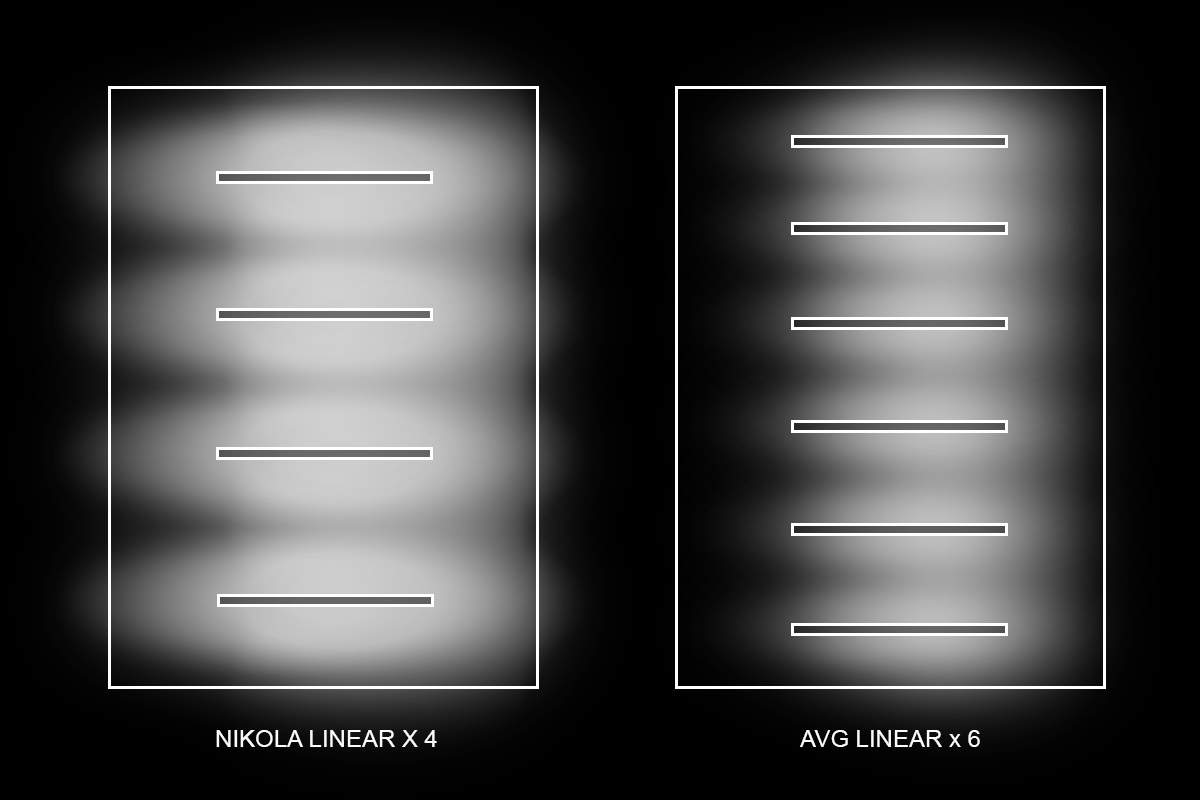

cost effective2.jpg

NIKOLA®

VALUE ADDED

Cost effective lighting solution. Each Nikola fixture has enough light output to reduce the number of fixtures required in a space by up to 33%, depending on application. This may reduce installation and maintenance costs as well.


NIKOLA® GLASS

Glass details with four low iron glass configurations

Glass X pattern: wave like up down pattern with side light on frosted panels.

Glass flags: visual rhythm and patterns of light.

Glass top: white sandblasted reflector produces an ambient light with softened shadows.

Glass sides: linear aesthetic and the feel of true glass illumination.


NIKOLA® WOOD

Wood details are a natural contrast to the metal work. Evokes visual warmness. Wood finish shown is standard, can be coordinated with existing wood finish, contact factory


NIKOLA® DRIVERS

Factory programmable driver options are high (standard), medium and low. These adjustments allow for lower wattage/lumen specification when required.

0-10 volt dim to 1% drivers remote as standard. No driver option available.

Alternate drivers are Lutron, Eldoled and emergency backup

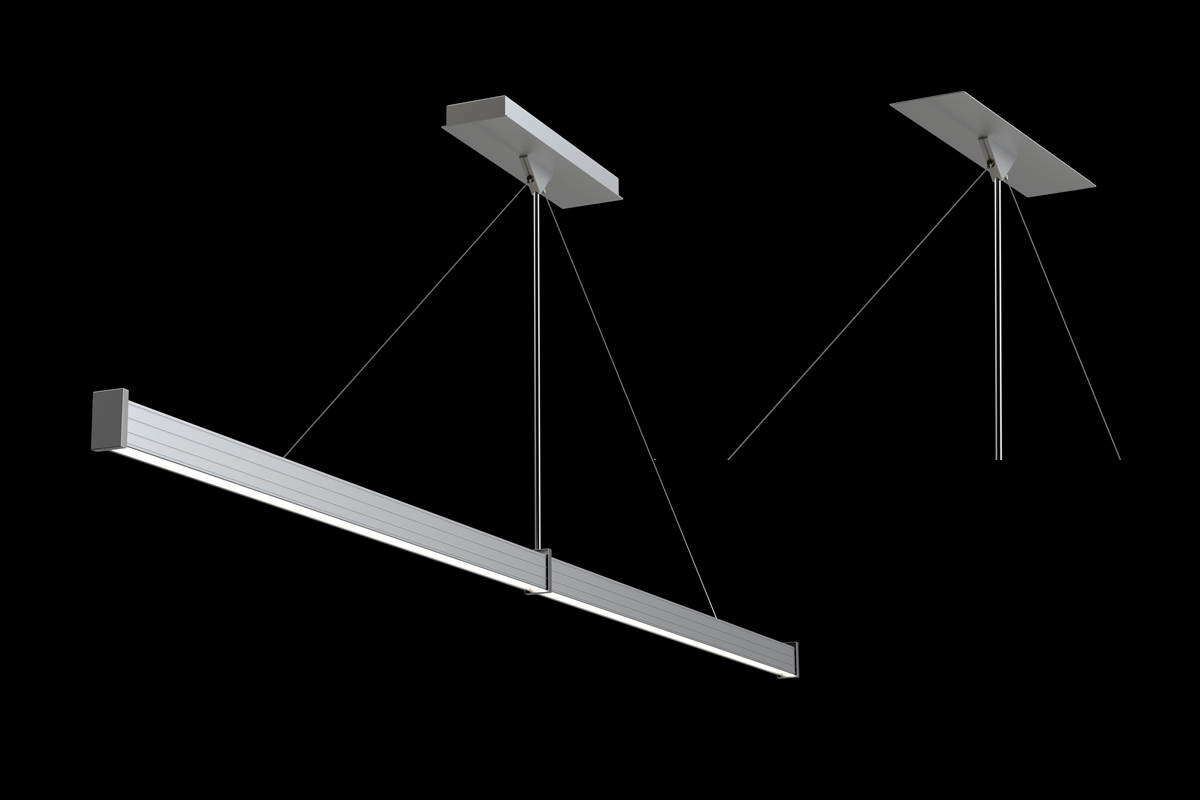

Flush box housing option: Can be recessed into ceiling or mounted on the surface.


NIKOLA® CONTROLS

0-10v (standard), Dali, DMX and Power over ethernet PoE

OSRAM Encelium

Lutron controls

GE Daintree

Hubbell NX

Bluetooth



NIKOLA® LINEAR LED COLLECTION
